$ 325,000 USD
Flag of Registry: United States PDF
1065 Riverside Drive
Palmetto FL 34221 USA

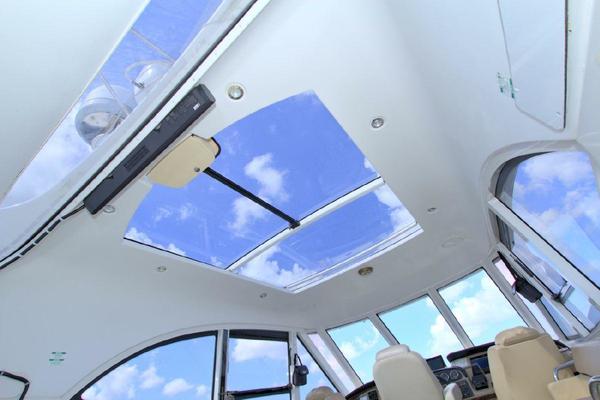

This 506 Aft Cabin Motor Yacht has been in fresh water up until the past 2 years. This example shows well and has been excellently maintained. The 506 is an impressive design giving the feel of a 60 motor yacht. The bridge fully enclosed and air-conditioned For a bit of fresh air, the 82-by-60-inch tinted glass sunroof slides open at the push of a button.

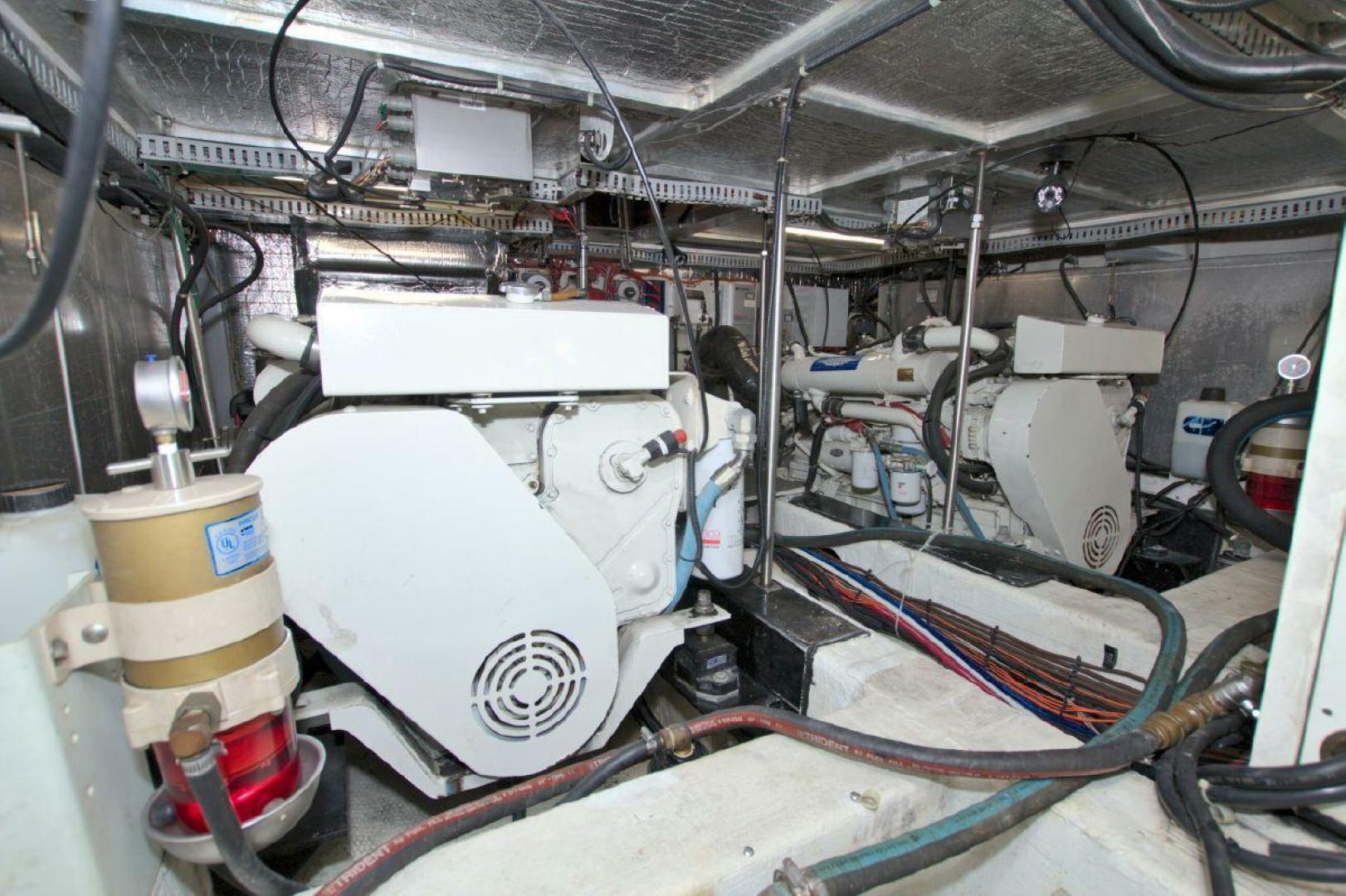

Powered with reliable Cummings 6CTA 8.3L turbo diesels. Port motor with 1173 hrs, Starboard with 1181 hrs. Motors are synchronized. There is an oil changing system installed for both motors and the generator. Also, a fuel polishing system. This boat has an larger 21.5KW generator with 2605 hrs.
This is the 3 full head layout model with vacuflush freshwater toilets.
There is 200’ of anchor chain, with a rebuilt windlass, and 2 spare anchors.
In the gally, the refrigerator/freezer and microwave have been replaced.
This boat has 4 new 8D batteries, as well as 4 standard batteries for the 24V bow thruster. Recently installed battery charger with 3KW inverter.
This particular yacht comes with a specialized swim platform davit system. It’s design allows easy to a dingy as well as moving out of the way for excellent access to the swim platform. This system doubles as a lift to assist in recovery of people in the water.

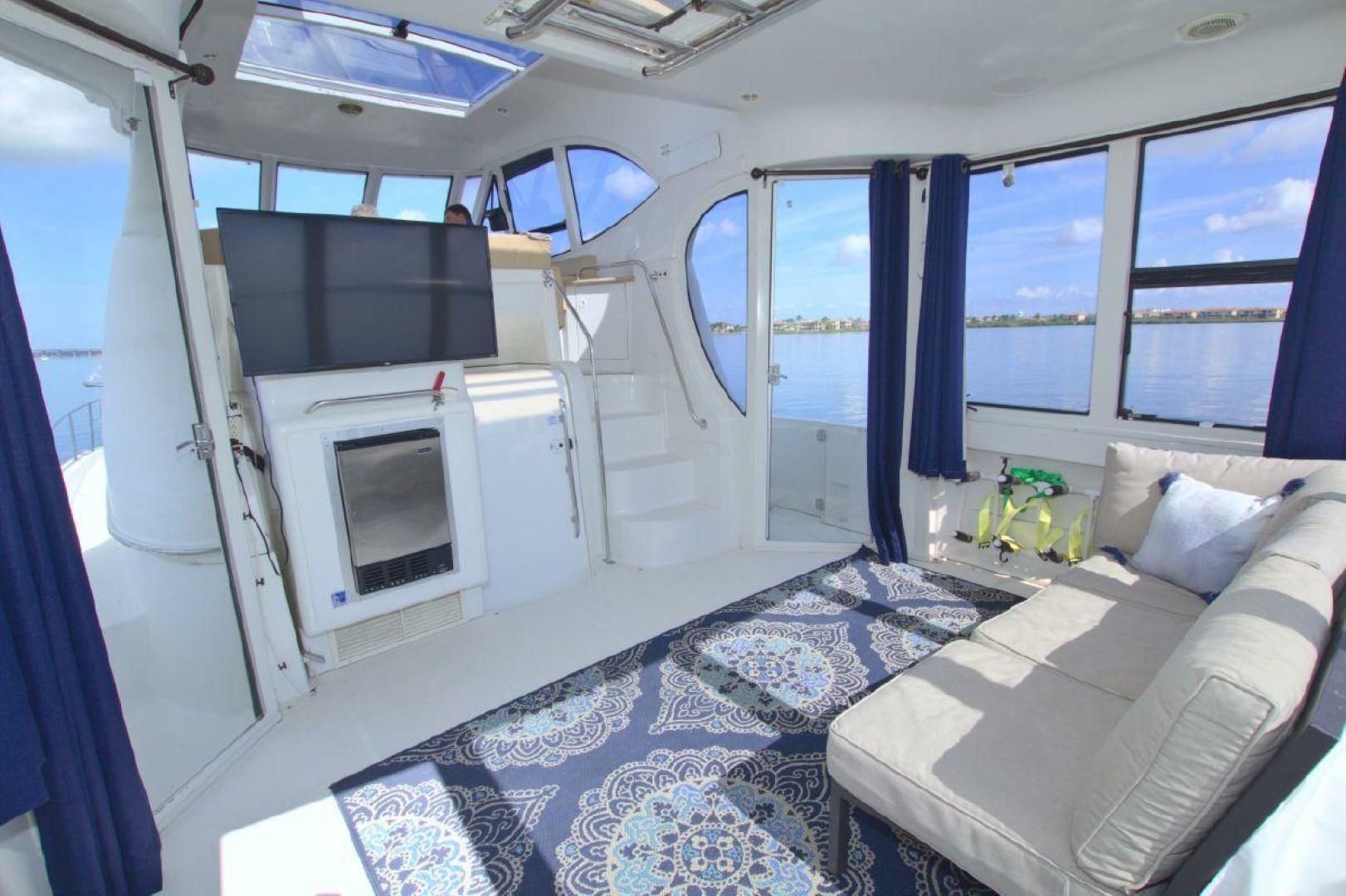

The 506’s afterdeck, also fully enclosed and air-conditioned, is integrated with the raised bridge.

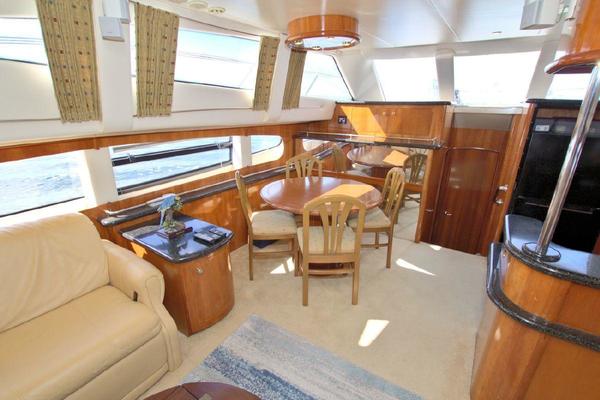

The usable interior space extends full beam to the hull sides, giving an very open feel to the salon.

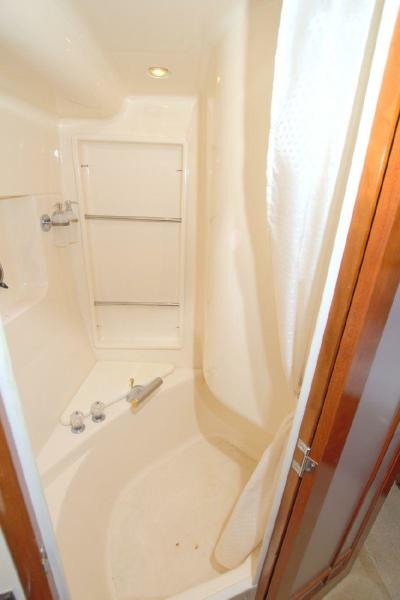

The master stateroom is aft and has a queen-size island berth with new thick high-density mattress. There is a sink area, as well as several cedar-lined hanging lockers. The shower/tub and head are in separate compartments. Two guest staterooms are forward of the saloon, vee berth has new high-density mattress. 3rd stateroom doubles as the laundry room with a stackable washer & dryer.
The 506’s interior is generously finished in cherry. Fit and finish are good, and the hardware, fixtures and fabrics appear first-class.
Two aluminum wing tanks carry 510 gallons of fuel, cruising needs. Range estimates from Carver are 230 miles at 20 knots, owner experience is 2.5 Statue miles/gallon at 10mph.
Flybridge has been updated with all the newest electronics, color radar, 3D sonar and depth, autohelm, rudder angle indicator. New VHF with hailer and listening. Plenty of room to sit 10 people in A/C.
LOA: 50' (15.24 Meters)
Type: Power- Used
Beam: 15' 4''
Draft Max: 4' 6''
Fuel Type: Diesel
Hull Material: Fiberglass
Bridge Clearance: 20' 10''
Fuel Tank: 510 Gallons (1930.56 Liters)
Fresh Water: 158 Gallons (598.09 Liters)
Holding Tank: 95 Gallons (359.61 Liters)
Dry Weight: 47900
The Carver 506 Motor Yacht is an aft-cabin motor yacht that offers spacious living accommodations. It does so by virtue of a design that features raised, nearly flush deck walk-arounds that enable the salon to be expanded the full width of the beam. That gives the 506 a wider, roomier-than-expected interior, which Carver has further opened up with one big, inviting room that encompasses the salon, galley and dining area. A free-standing dining table and chairs provide extra flexibility. And the intriguing two-tiered elliptical window configuration offers unparalleled visibility whether passengers are seated or standing - plus, the streamlined windows add to the bold swept-back exterior styling. The 506 offers three main levels for entertaining: the flybridge, aft deck and cabin...all can be fully air-conditioned and enclosed.
SALON - 110V outlets (3) - GFCI protected. AC and DC distribution panels. Cabin stairway - hinged to pivot into salon to provide access to engine room, supported by gas shocks. Carpet - beige, tufted cut pile, 65 oz., crush-resistant, 100% nylon. Designer curtains - decor-matched. Designer decor. Dry bar cabinet - 2 doors. End tables (3) - solid surface tops. Entertainment group - TV, VCR, and 110V component stereo including AM/FM receiver, CD player, CD changer, and 2 speakers each in salon, master stateroom, and forward stateroom. Entrance door - acrylic, curved, sliding, handle lock, with interior screen. Fresh air system - passive, with controllable overhead vents. Hardware highlights - brass/chrome. Lights (5) - halogen, overhead, recessed. Lights (8) - halogen, over windows, recessed. Lounge - Flexsteel, chamois UltraLeather, with double incliners and extension. Master stateroom stairway - integral. Miniblinds - decor-matched. Rocker light switches. Shelf - solid surface with restraining rail. Sofa - Flexsteel, chamois UltraLeather, with storage beneath. Storage cabinets (2). Telephone connector. DINETTE - Carpet - beige, tufted cut pile, 65 oz., crush-resistant, 100% nylon. Designer curtains - decor-matched. Designer decor. Dining chairs (4). Hardware highlights - brass/chrome. Lights (4) - halogen, overhead, recessed, in circular, mirrored, dropped ceiling. Miniblinds - decor-matched. Mirrored forward bulkhead. Shelf - solid surface with restraining rail. Storage cabinets (2). Table - round, free-standing.
AC/DC distribution panels with magnetic circuit breakers and integral generator and bilge blower controls; AC voltmeters; AC ammeters. Batteries (5) - deep cycle, marine (12V). Battery chargers (2) - electronic, AC-DC converters. External connectors - CATV, telephone. Generator - 10.0 kW, diesel. Ground Fault Circuit Interrupt (GFCI) protection - all 110V outlets. Inverter. Shore power connector - 50 amp. Shore power cord - 50 ft. Wiring system - tinned copper strand wire, harnessed, color-coded, labeled, meets or exceeds ABYC standards.
110V outlets (4) - GFCI protected. Coffee maker. Designer decor. Flooring - wood plank. Freezer. Hardware highlights - brass/chrome. Lights (2) - halogen, overhead, recessed. Lights (2) - halogen, over countertop, recessed. Microwave. Miniblinds - decor-matched. Mirrored surface on bottom of overhead cabinet. Oven - electric. Range - electric, 3-burner, ceran top. Refrigerator. Rocker light switches. Sink - 2 basin, integral, with solid surface covers. Solid surface countertops. Storage cabinets. Storage drawers. Storage - under sink.
Anodes - zinc, sacrificial. Battery master disconnect switches. Battery restraint boxes. Bilge blowers (12V). Bilge pumps (4) - 2000 gph each, automatic/manual operation. Brass valves for all underwater thru-hulls. CO detectors in salon and staterooms. Compass - illuminated. Engine alarms - temperature and oil pressure. Fire suppression system - automatic, FE241 (FM200 in European Community). Galvanic isolator/zinc saver. Horns - dual, air/electric (12V), trumpet. Internal bonding system. Isolation transformers on the internal shore power lines. Molded nonskid surfaces on all walk decks - diamond pattern. Navigation lights (COLREGS).
Cummins 450 engines (2). Cutlass bearings - synthetic rubber composite. Dripless shaft logs. Exhaust mufflers - engines. Exhaust muffler - generator. Fresh water cooling - engines. Fresh water cooling - generator. Fuel tanks - welded, baffled 5052 aluminum. Hydraulic steering. Propellers. Propeller shafts - aquamet. Rudders - 421 manganese bronze. Seawater strainers. Struts - 421 manganese bronze. Trim tabs - stainless steel, hydraulic.
Solid fiberglass hull bottoms with Knytex substrates and Vinylester barrier coat. Molded fiberglass stringer system. Hand-laid, molded fiberglass components featuring composite laminate hullsides, decks, and cabintops. Structural engine mountings - longitudinal stringer span mounting with reinforced, gusseted, welded perpendicular steel plates. Fabricated aluminum floor frames with stainless steel stanchions. Cherry wood bulkheads, cabinetry, and trim throughout cabin, with high gloss finish. Tinted, tempered safety glass frameless window systems. Unitized deck and cabintop construction with integral aluminum truss reinforcement in cabintop structure.
AFT DECK - 110V outlet - GFCI protected. 118 ft2 (approx.), integral to deck. Command bridge stairway - integral to deck with 2 stainless steel hand rails. Electronics arch - custom aluminum with acrylic polyurethane surface coating and UV protection. Electronics arch access plates (5) - corrosion-resistant polymer attached with noncorroding screws and waterproof sealant. Enclosure - soft sides and soft back, for entire aft deck. Grab rail - 20" stainless steel, above storage locker. Hardtop over entire aft deck. Hardtop roof access - fold-down stainless steel ladder secured by latch and 3 cotter pins; tinted, lockable hatch. Lights (5) - halogen, overhead, recessed, with exterior-mounted switch. Stereo speakers (2). Storage locker - double doors, 2 shelves. Transom door - secures open and closed, acrylic in aluminum frame, stainless steel hardware. Wing doors (2) - secure open and closed, acrylic in aluminum frame, stainless steel hardware, provide access to the side decks. SIDE DECKS - Bow rail - 1.25" O.D., lineal-buffed, welded stainless steel, with additional intermediate rails. Bow rail stanchions - double-welded (inside and outside), stainless steel, anchored to aluminum backing plates laminated into deck. Cleats (4) - 10" spring, stainless steel, through-bolted through aluminum backing plate. Deck toe rail. Grab rail - stainless steel, over cabin windows, runs length of cabin and above windshield. Rail doors (2) - aluminum, port and starboard, stainless steel hardware. Rub rail molding - heavy-duty, stainless steel insert. FORE DECK - Anchor chain locker. Cleats (2) - 12" stainless steel, through-bolted through aluminum backing plate. Cleat - 12" stainless steel for anchor line, through-bolted through aluminum backing plate. Over-the-stem anchor roller.
COMMAND BRIDGE - 110V outlet - GFCI protected. Grab rails (3) - stainless steel, on outboard bulkheads. Hardtop over entire bridge. Lights (6) - halogen, overhead, recessed. Lights (2) - halogen, courtesy, recessed. Lounge - L-shaped, aft, with storage beneath, accommodates 4 adults. Lounge - double-wide, starboard side, with storage beneath. Self-draining walk surface. Storage lockers (3). Sun roof - tinted, powered. Wet bar - self-draining designer countertop with integral sink, preparation surface, and bottle storage beneath. HELM - Access panel - provides access to wiring in helm console. Accessory space - for installing navigation equipment. Adapter - 12V. Beverage holders (3) - recessed, self-draining. DC distribution panel - bridge 12V systems. Grab rails (2) - stainless steel, on either end of helm. Helm seat - adjustable, triple-wide, high-quality marine-grade upholstery, embroidery stitching. Lights (2) - halogen, courtesy, recessed. Light - halogen, night operations, red illumination. Stereo speakers (2). Telephone connector. Tilt steering wheel. Windshield - full height, aluminum frame, with 1 wiper. INSTRUMENTATION - Gauges - combination synchronizer/rudder angle, digital tachometer (1 per engine). Multi-gauges (1 per engine) - oil pressure, engine temperature, engine battery voltage, fuel level. Rocker switch controls.
110V outlets (3) - GFCI protected. Bedside endtables (2) - solid surface tops. Berth - queen, inner-spring mattress, offset island. Carpet - beige, tufted cut pile, 65 oz., crush-resistant, 100% nylon. Designer decor. Entrance door - secures closed, integral door stop, stainless steel hardware. Hanging lockers (4) - cedar-lined; 31.5", 26", 13", and 6" and 3" hanging bars, automatic light. Hardware highlights - brass/chrome. Lights (2) - directable reading sconces. Lights (2) - halogen, recessed, over aft window. Lights (3) - halogen, recessed, over berth head. Lights (6) - halogen, overhead, recessed. Miniblinds - decor-matched. Mirrored ceiling over berth head. Portlights (2) - screened. Rocker light switches. Settee - integral. Shelf - solid surface with restraining rail. Solid surface countertops. Stereo speakers (2). Storage drawers (8). Storage cabinets (12). Telephone connector. Window - tinted, removable, in aft bulkhead.
110V outlets (2) - GFCI protected. Bedside shelves (2) - cherry wood. Berth - queen, island. Carpet - beige, tufted cut pile, 65 oz., crush-resistant, 100% nylon. Designer curtains - decor-matched. Designer decor. Entrance door - secures closed, stainless steel hardware. Hanging lockers (2) - cedar-lined, 19" and 9" hanging bars, automatic light. Hardware highlights - brass/chrome. Lights (2) - halogen, directable, recessed, reading. Lights (6) - halogen, overhead, recessed. Overhead hatch - 20" diameter, lockable, inside screen, over berth. Portlights (3) - screened. Rocker light switches. Sheet set - fitted sheet, flat sheet, and two pillow cases. Solid surface countertops. Step-ups next to berth. Stereo speakers (2) - with volume control. Storage - beneath berth. Storage drawers (2). Telephone connector.
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
