Hull and Deck Material

Hull - Diagonal planked Joubert Okoume marine plywood (cold-molded) fiberglassed with epoxy resins. Triple-layer 1/4" Okoume marine plywood hull bottom and double-layer 1/4" Okoume marine plywood hull sides all glassed with tri-axial laminates inside and out. Bilges separated, 8ea bilge pumps.

Exterior Awlgrip painted - Light yellow hull and white deck.

Deck - epoxy fiberglassed Okoume marine plywood firedeck and Core-Cell closed-cell PVC foam sandwich cored bridge deck.

Fishing Equipment

Tower - pipe-welded anodized aluminum tuna tower with fiberglass bridge hardtop, tower platform, buggy top sunshade and three sided vinyl bridge window enclosure curtains.

Outriggers - Rupp Marine.

Washdowns - Freshwater and raw water washdowns.

Teaser Reels - 2ea Miya Epoch US-9HD 12v electric teaser reels

Electric Reel Outlets - 2ea 12v electric reel outlets

Accommodations

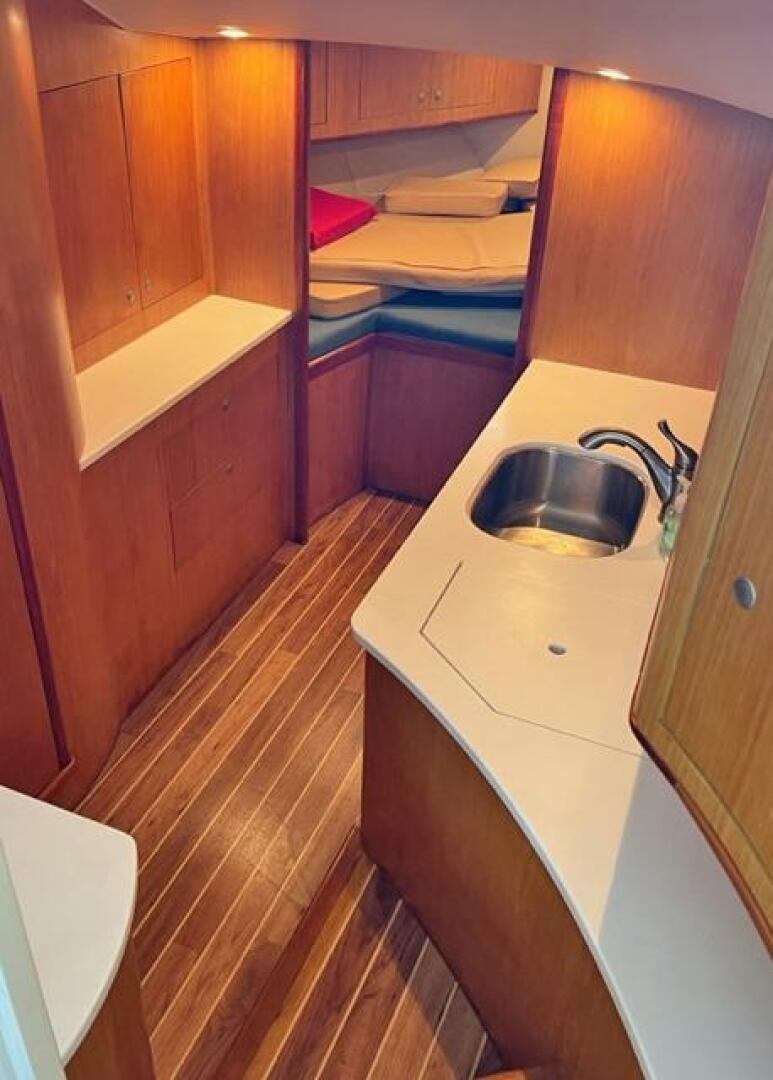

In the main cabin, with 6'4" headroom,the galley is to starboard with head across to port. Forward is the v-berth(6'4" long) with storage cabinets.

The head is a Raritan "Elegance" 12v DC freshwater head with holding tank

The interior cabinetry is satin finished teak and cherry trim with a teak and holly cabin sole.

Most cabinets have lighting.

Galley

• Isotherm Webasto AC refrigerator/freezer
• Haier microwave
• SS undermount galley sink
• Hot and cold pressure water

Hull and Deck, Mechanical

• Ball valve type seacocks
• SeaKeeper3 anti-roll control gyro stabilizer, 2022, 20 hrs
• Two(2) Steering stations - express bridge helm and upper tower station helm
• Vetus 12v bow thruster
• Fortress FX-16 aluminum anchor, chain and rode
• EPIRB
• Eight(8) electric automatic bilge pumps
• Lenco 12v DC electric trim tabs w/level indicator gauges and auto-retrac

Electrical

• Dometic 16,000BTU reverse cycle marine air w/digital control.
• Phasor Marine K3-7 PMG diesel generator(8kw) 3826 hrs
• 18gal diesel tank, aluminum
• 4ea 12v Group 24 batteries
• Optima "BlueTop" 12v AGM battery for 12v bow thruster
• Blue Seas 12v/25amp battery charger, house
• Blue Seas 12v/10amp battery charger, thruster
• 50amp shore power cord
• Eco Smart tankless water heater, 120v

Engines

Twin Yamaha 350hp 4 stroke with "Command Link" engine systems monitoring display.

Two(2) Racor S3227 filters

Palm Beach style throttle/shift controls with integral bow thruster buttons at the express bridge and Yamaha "Command Link" digital drive-by-wire throttle/shift binnacle at the tower.

Electrical

• Standard Horizon GX2000 VHF
• 4" Ritchie compass
• 2" Ritchie compass
• Garmin GPS-Map 8617, 17"
• Garmin GPS-Map 7607 7"
• Networked GPS chartplotter, GMR-624 xHD2 open array 72 mile radar, satellite weather input(no current subscription)
• GXM-52 Satellite weather receiver interfaced w/multi-functional navigation displays
• FLIR MD-625 infrared night vision camera interfaced w/multi-functional navigation displays
• Garmin GHC-20 autopilot w/tower helm repeater interfaced with the Garmin multi-funcaional nav displays
• Stereo - Fusion Link MS-BB300 am/fm stereo, bluetooth/satellite radio ready player w/ JL audio interior and exterior speakers
