2014 Irving Forbes 36 Center Console - Miss Emma - Profile Picture
Custom Carolina
2014 Custom Carolina 36' 10.97 m 36 Walkaround Express - Miss Emma
$ 359,000 USD
- Los Sueños, Puntarenas Costa Rica
- Center Consoles / Sport Fishing
- Power
- Used
- Diesel
- FRP Hull
- Stock #: BRA2342-TC
Vessel ID# 2798258Last Updated: 05-17-2023 12:36:56
| FEATURES: |
|---|
| Tower |
| SeaDek Decking |
| Rupp Outriggers |
| Garmin Electronics |
| Walkaround Design |
| Notable Upgrades: |
| Date Listed: 04/26/2023 |
Antonio Carrizosa
Yacht Broker
Los Suenos Resort and Marina
Marina Village, Suite 10
Playa Herradura Puntarenas Costa Rica
Description
Miss Emma is a 2014 Custom Carolina 36 Center Console, designed by Steve Matthews of Ocean Yachts and built by Irving Forbes. Miss Emma is a true fishing machine. This 36ft single Cummins engine boat, boasts a spacious cockpit and walk-around design. The center helm and tower, give you the utmost convenience and visibility. Miss Emma has been meticulously maintained by its knowledgeable owner and is ready to go! Come see Miss Emma, conveniently located in Los Suenos, Costa Rica.
Data Sheet
Official Number: 116163628
Stock #: BRA2342-TC
LOA: 36' (10.97 Meters)
Type: Power- Used
Year: 2014
Beam: 11'
Heads: 1
Maximum Speed: 33 Knots
Cruise Speed: 26 Knots
Fuel Type: Diesel
Hull Material: FRP
Hull Shape: Deep Vee
Bow Thruster: Yes
Fuel Tank: 275 Gallons (1040.99 Liters)
Fresh Water: 35 Gallons (132.49 Liters)
Builder: Irving Forbes
Photos click to view all
Multimedia
Engines
Engine 1
- Engine Make: Cummins
- Engine Model: QSB6.7550HOI
- Engine Year: 2014
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 550.00
- Power KW: 410.13
- Fuel Type: Diesel
- Hours: 2780.00
- Serial Number: 73521505
- Engine Location: Middle
Full Details
Hull and Deck
- Open Center Console Design
- White paint topsides
- FRP transom
- Vetus bow thruster
- Rod holders in tower and gunwale
- Fishbox in centerline at the transom
- Chain locker to bow with drainage to bilge
- Grey SeaDek padded foam overlay
- Cockpit and decks drain overboard
- Stainless steel mooring cleats
- Thru-hulls below water line
- Bronze and marelon water lines, double clmaped valves
- Hull mounted zinc on transom
- (4) Four Rule 2000gph 12VDC Bilge pumps
- Four bladed bronze propeller
- Stainless steel propeller shaft
- Cutless shaft bearing
- Single I-beam strut
- Stainless steel rudder
- Stainless steel single actuator trim tab by Lenco
- Transducers
- Black ablative type antifouling paint
- Fortress FX-11 anchor
- Galvanized chain rode
- Tubular aluminum handrails along sides of tower
- Cuddy cabin and deck foam cored FRP
- Electric flush head by Jabsco at head
Washdown system:
- Fresh water and salt water wash down hoses to forward and cockpit port and starboard below gunwales
Electrical System
- AGM battery powered 12 volt system
- Total of (4) four batteries
- Batteries mounted in plastic battery trays
- Main DC Panel located below helm console
- Digital type switching controls
- Belt driven alternator
AC System:
- (1) MarinCo 15 amp, 125 volt inlet, to starboard side
- Battery charger only

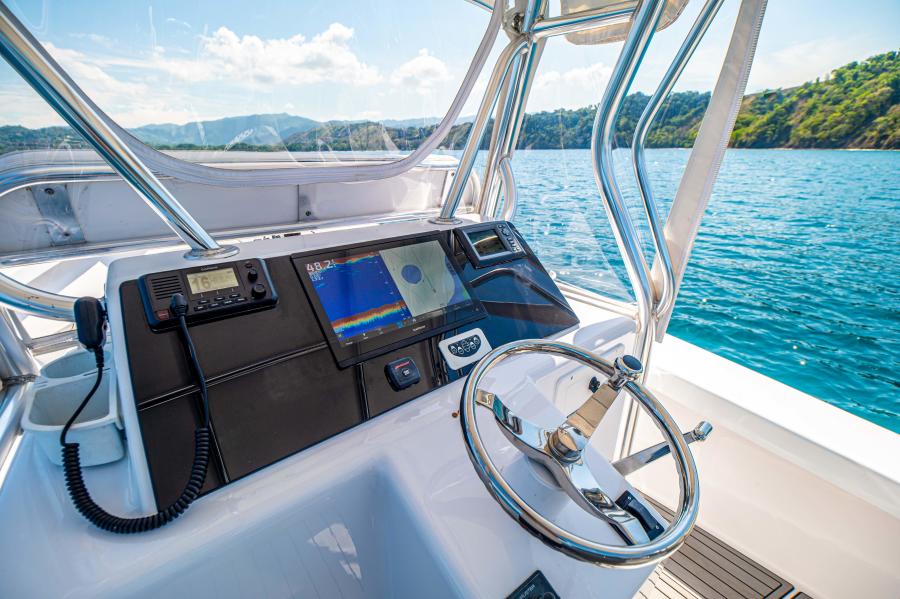

Helm Station
- Glendinning electronic engine controls
- SmartCraft Engine Display
- Bow thruster control
- Engine Start/Stop switch
- Trim Tab Controls
- Low oil pressure alarm
- Overheating alarm
- Garmin VHF 2022
- Garmin 8614 new in 2022
- Fusion Radio new in 2022
- Airmar transducer new in 2022
- (4) Rule 1500 bilge pumps
- Highwater alarm
- Seadek new in 2022
- 23' Rupp Outriggers new in 2023
- Saltwater washdown
- Cooler behind seating
- Cooler under rocket launcher
- Insulated transom fish box / live well (3 layers of foam to keep ice all day)
- Cuddy cabin entrance is through hinged acrylic door to starboard
- Marine head located forward in cabin
Upper Station (Tower)
- Welded tubular aluminum tower
- Tower with buggy top lashed on canvas for sunshade
- Engine start/stop switch
- Glendinning electronic engine controls
- 742xs Chart plotter engine display
- Garmin 8610 installed in 2022
- Trim Tab controls
- Vetus bow thruster control
- VHF radio new in 2022
- Spreader lights
Electronics
- VHF Garmin 215 at lower helm
- Standard Horizon Matrix GX2000 VHF at tower helm
- Garmin Radar 8616XSV at lower helm
- Garmin 8610 at tower helm
- 96 nm radar range
- Garmin GPS Map 741xs display at upper helm
- 2'' Ritchie compass
- Mercury VesselView digital display
Engine Compartment
Access through a hinged acrylic door aft cabin
Propulsion
- Single Cummins QSB 6.7 550hP Engine turbocharged / aftercooled inline (6) cylinder
- Glendenning electronic controls
- Stringers to port and starboard
- Adjustable motor mounts
- Power blower forward engine
- Raw water cooled
- (1) One aluminum fuel tank
- Fill pipe located to port cockpit gunwale
- Shut-off valve at tank supply fitting
- Primary Racor fuel filters 900 MA
- ProSport20 Battery Charger
Steering System
- Hydraulic by SeaStar
- Actuator cylinder
- Rudder shaft installed in FRP
